Motorola APX6000XE

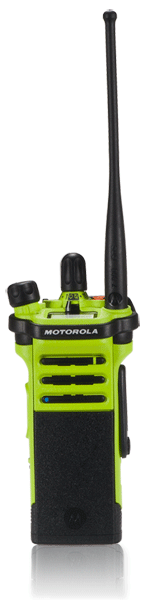

Motorola APX6000XE P25 Portable Radio

A Smart Investment Delivering Leading Edge Technology in a Compact Design

In the heat of a wildfire or the smoke of a structure fire, you can't afford to struggle with controls or strain to hear commands. You need a radio so reliable and responder-focused, it's second nature to use. Working with first responders around the world, we developed APX™ radios to be safer and tougher than others – and to deliver innovative technology in an ultra-rugged, glove-friendly form.

The APX 6000XE is the "lightweight heavyweight" – a small, single band radio with extreme ergonomics and excellent audio that takes on the tough tasks of fire service and EMS. It's the two-way radio that can strengthen safety precisely because it is engineered for extreme conditions.

Real-world Ruggedness

Everything about the APX 6000XE is designed with first responders in mind – starting with a large top display with intelligent lighting so you can see information at a glance. Then oversized controls that are easy to operate when you're wearing bulky gloves –including the volume and channel selector and X-large emergency button. With its rugged MIL specs, FM certification and optional color housings, it's the portable performer you can rely on in the harshest environments.

Loud, Clear And Noise-cancelling

Racing to a medical emergency or reporting from a rural fire, you need crystal-clear audio - and the APX 6000XE delivers. Its dual microphone design locates the talker while it cancels out ambient noise. Not only is the APX 6000XE equipped with the latest AMBE digital voice vocoder, its extreme audio profile reduces background noise and improves voice clarity. Plus, a unique speaker grill design improves water runoff to keep communications going strong.

Small Size, Big Technology

• Three lightweight, mission extreme models
• Easy-to-use keypad for front panel programming and text messaging
• P25 Phase 2 capable for twice the voice capacity
• Backwards and forwards compatible with all Motorola mission critical radio systems
• Mission Critical Wireless and GPS location tracking application support to improve safety

Motorola APX 6000XE Features

• Available in 700/800 MHz, VHF, and UHF Range 1 bands
• Trunking standards supported:
  • Clear or digital encrypted ASTRO®25 Trunked Operation
  • Capable of SmartZone®, SmartZoneOmnilink, SmartNet®
• Analog MDC-1200 and Digital APCO P25 Conventional System Configurations
• Narrow and wide bandwidth digital receiver (6.25KHz equivalent/12.5KHz/20KHz/25KHz)
• Embedded digital signaling (ASTRO & ASTRO 25)
• Available in 3 models
• Intelligent Lighting
• Radio Profiles
• Unified Call List (Models 2 and 3 only)
• User programmable voice announcement
• Meets Applicable Mil Specs 810C, D, E, F and G
• Ships standard Intrinsically Safeand Rugged*
• Yellow and green colored housing options
• Custom recessed label areas

Superior Audio Features

• 0.5 W high audio speaker
• Dual microphones
• Extreme audio profile
• Utilizes Windows XP, Vista and Windows 7 Customer Programming Software (CPS)
  • Supports USB communications
  • Built in FLASHport™ support
• Full portfolio of accessories including IMPRES batteries, chargers and audio devices

Optional Features

• GPS Location Tracking
• Mission Critical Wireless
• Enhanced Encryption capability
• Programming Over Project 25
• Over the Air Rekey
• Text Messaging
